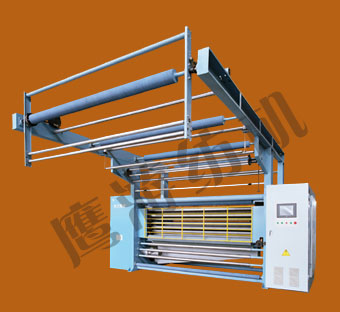

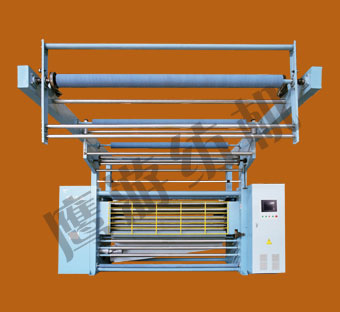

SME485高速刷毛機
發布時間:2011-08-26
.jpg)
.jpg)
.jpg)
.jpg)
產品用途及主要技術參數
1、用于搖粒絨的梳毛整理。本產品屬國內首創,與國際同類產品相媲美。
2、幅寬:2000mm 2200mm 2500mm
3、走布速度:25—60m/min
4、刷毛輥數量:24根
5、刷毛輥直徑(裸):Ф64mm
6、大錫林轉速:60—130rpm
7、操作方式:觸摸屏控制
8、電動機裝機總功率:25.1kw(不含風機)
9、機器重量:約4000kg
10、機器外形尺寸 (長x寬x高) :4500x 4250x 3236(mm)(幅寬2000mm)
USES AND MAIN TECHNICAL PARAMETERS
1、Suitable for brushing of anti-pilling micro fiber, span, tc,tr, cvc, span+tc,
it fills the empty of our nation, and can compete with the international products.
2、Width: 2000mm 2200mm 2500mm
3、Working speed: 25-60m/min
4、The number of brushing rollers: 24
5、Diameter of brushing roller: Φ64mm
6、Rotational speed of the cylinder: 60-130rpm
7、Operation style: touching screen
8、Total motor power: 25.1kw (air machine not include)
9、Weight of the machine: about 4000kg
10、Overall dimensions: ( length * width * height ) 4500 * 4250 * 3236(mm)(working width 2000mm)
